Fender Stratocaster Rewiring

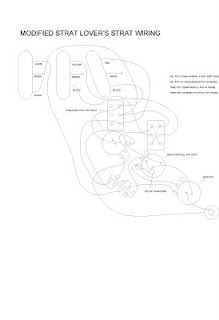

Here's the wiring I'm currently running in my Stratocaster. It is based almost entirely on the Strat Lover's Strat wiring available at GuitarNuts here. The basic premise is to use a push-pull pot on the volume knob which adds the bridge pickup in series to whatever you have selected via the 5-way switch. It only works for the first three positions, neck, neck and middle, and middle. Positions 4 and 5 just select the bridge pup by itself. This creates some really interesting humbucker-like sounds. I especially like the combination of the neck and bridge pickups in series. Not a sound that you can usually get out of a Strat. The other change is to use a push-pull pot on the tone knob to allow switching the middle pickup out of phase, which works both in positions 2 and 4 in normal switching and when the bridge pup is added in series. I always like the out-of-phase sound and this offers, in my opinion, the most flexibility. The only other major wrinkle is that I have used the Fender Samarium Cobalt noiseless pups and there is an extra ground wire coming out of each. Purists might balk at these pickups, but I love the lack of noise and they sound a lot warmer that the Fender-Lace pups which were standard on the Strat Plus in the late 80s and early 90s.
